• Skip to primary navigation
  • Skip to main content

About Corrosion

All about corrosion science and engineering

  • Home
  • Announcements
  • Sections
    • Fundamentals
      • HowTos
      • Electrochemistry
      • Thermodynamics
      • Kinetics
      • Localized corrosion
      • Stress corrosion cracking
      • Cathodic protection
      • Carbon dioxide
    • Physical Metallurgy
    • Low alloy steels
    • Corrosion Resistant Alloys
      • Stainless steels
      • Nickel Alloys
  • Library
    • Lectures
    • Journal Articles
    • Conference Papers
    • Presentations
    • Abstracts
    • Definitions
    • Equations
    • Standards
    • Videos
    • Tables
  • Ref Convert
  • OpenLab!

Anodic polarization curves UNS N07718 (mill annealed) in 3.5% NaCl

September 15, 2017 by Mariano Iannuzzi

This post illustrates three cyclic anodic polarization curves of the precipitation hardening nickel alloy (PHNA) UNS N07718 —mill annealed— in deaerated 3.5 wt% NaCl (pH 8.0). <br>

Cyclic potentiodynamic polarizations were conducted in accordance with ASTM G61. The potential scan rate was 0.6V/h. The direction of the scan was reversed at i = 10 mA⋅cm-2, assuring a minimum charge density of 10 C⋅cm-2.

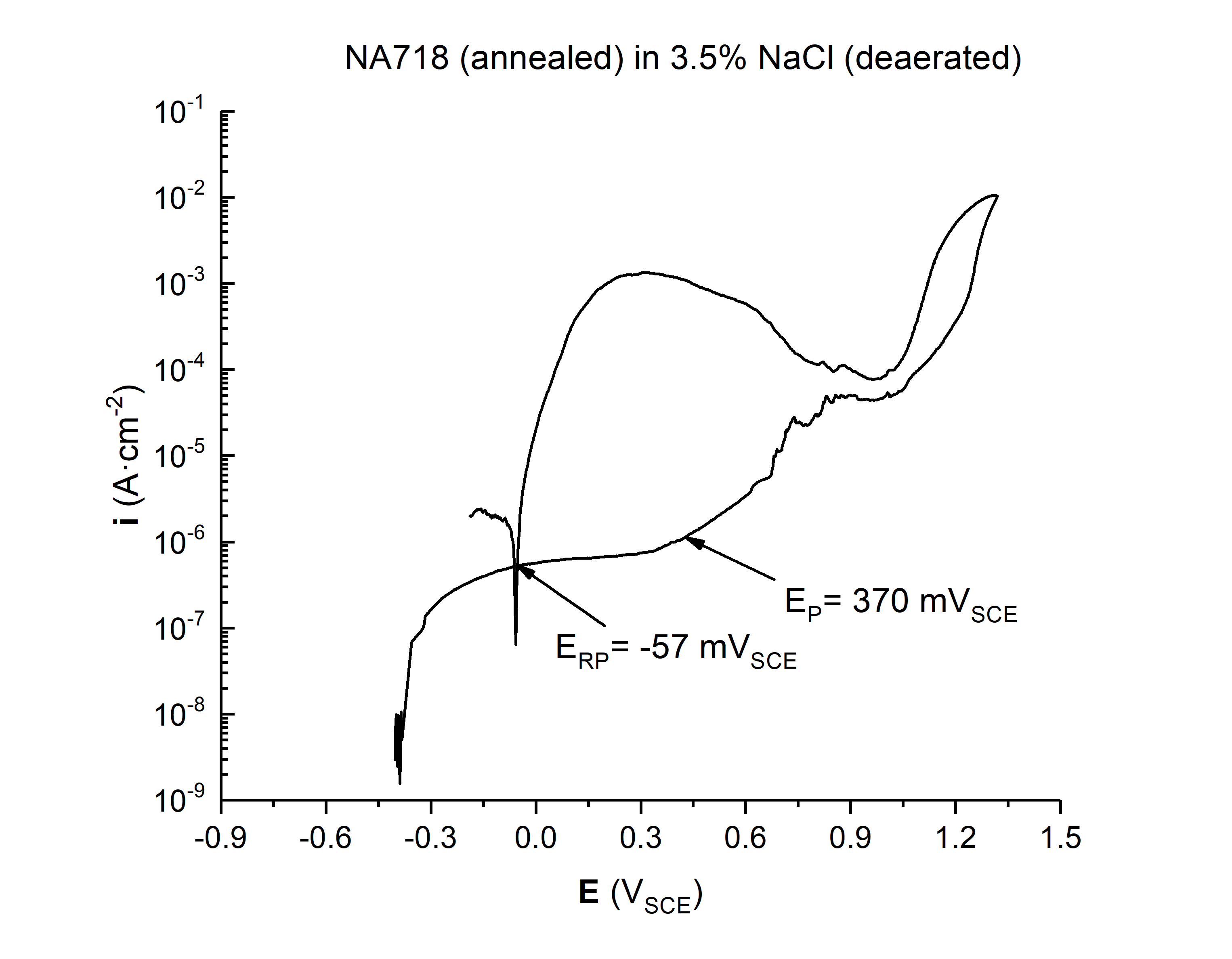

Cyclic anodic polarization of precipitation hardening nickel alloy (PHNA) UNS N07718 – mill annealed in 3.5 wt% NaCl (pH 8.0). CC BY-NC-SA 3.0

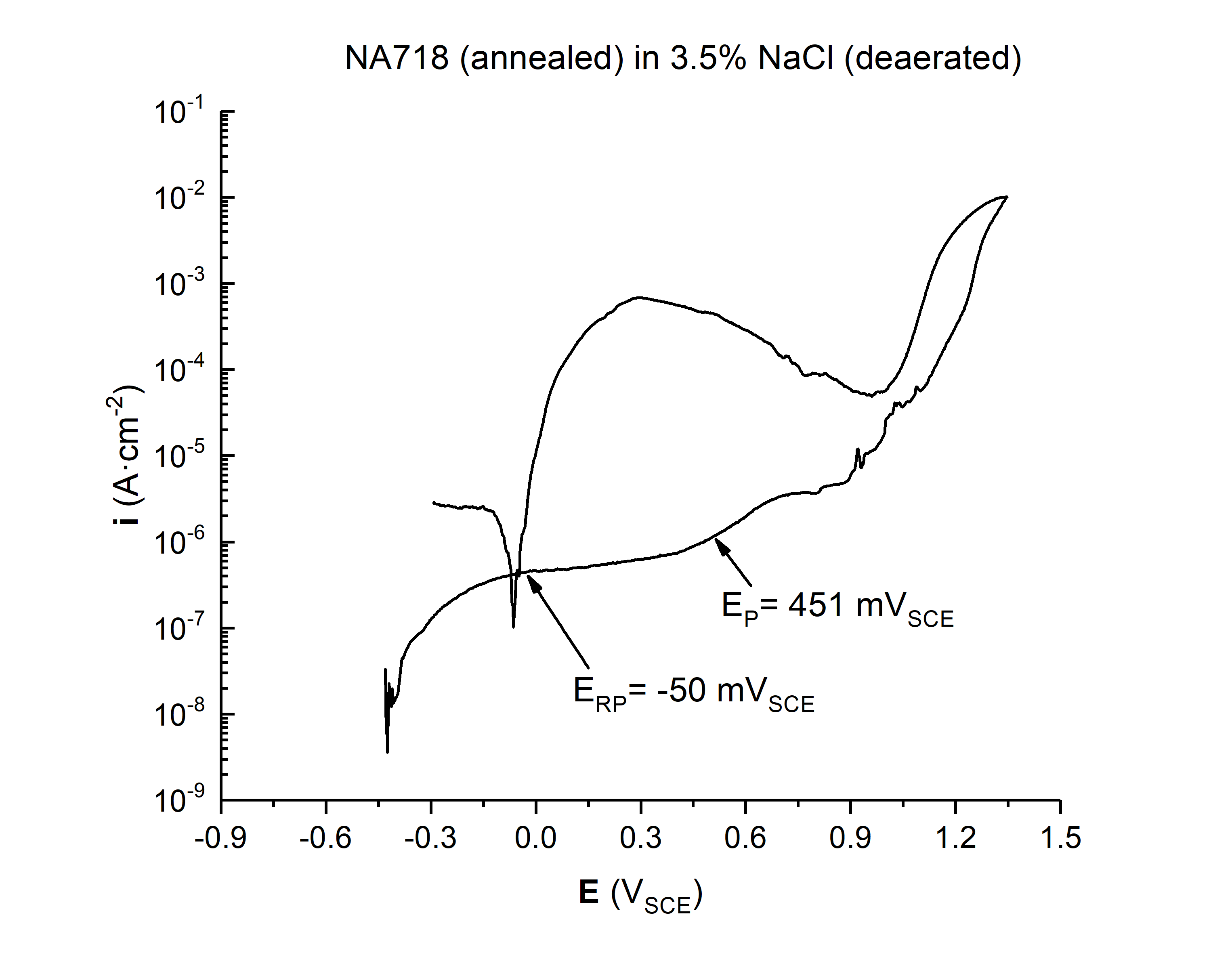

Cyclic anodic polarization of precipitation hardening nickel alloy (PHNA) UNS N07718 – mill annealed in 3.5 wt% NaCl (pH 8.0). CC BY-NC-SA 3.0

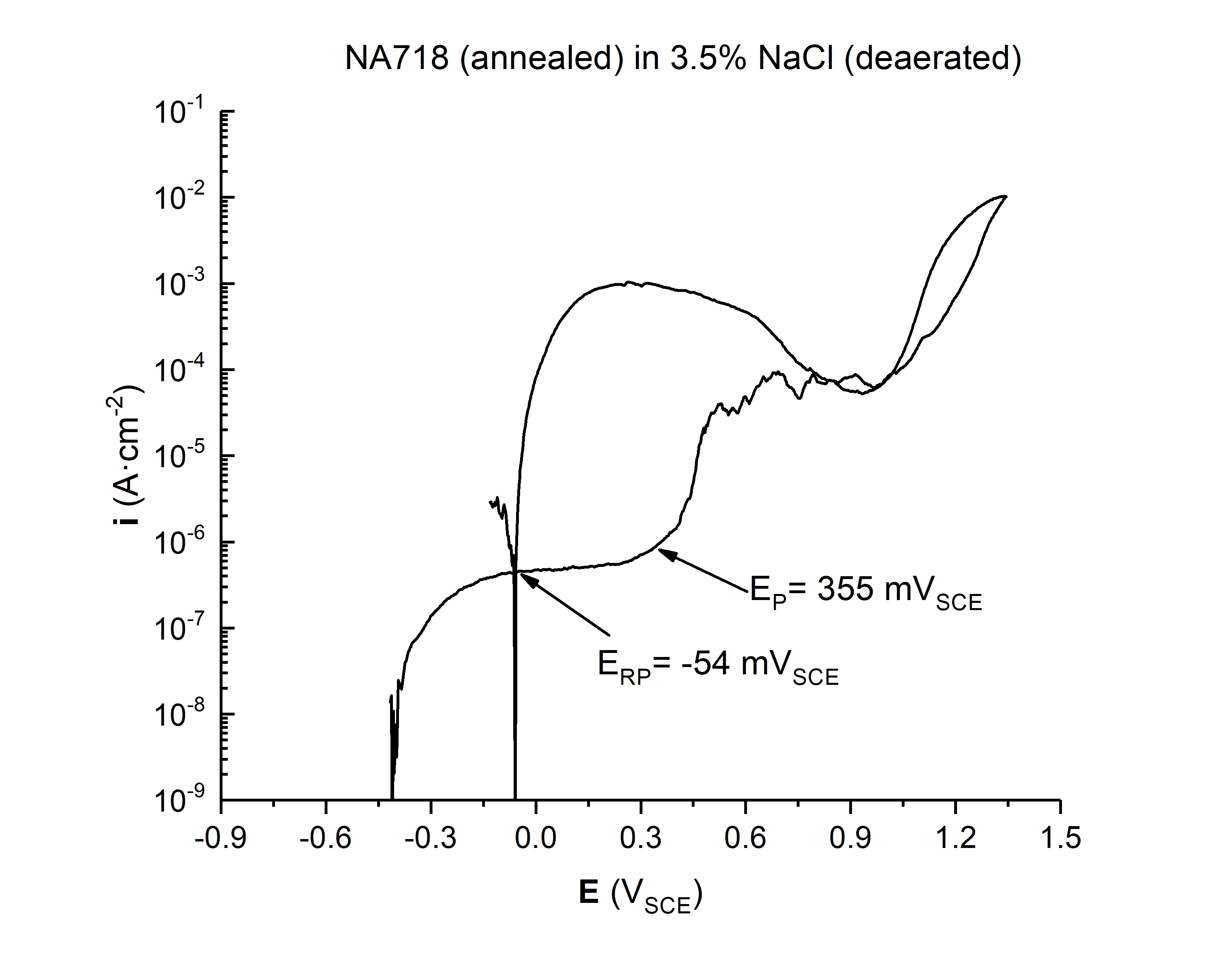

Cyclic anodic polarization of precipitation hardening nickel alloy (PHNA) UNS N07718 – mill annealed in 3.5 wt% NaCl (pH 8.0). CC BY-NC-SA 3.0







Acknowledgements

I like to thank Prof. Mauricio Rincón Ortiz (Industrial University of Santander) for conducting the experimental work and Dr. Raúl Rebak (General Electric) for providing the test samples.

Updates

2017-09-19:

  • Added hyperlinks to UNS N07718 composition, heat treatments, and properties.
  • Added the “Acknowledgements” section.

2017-09-21:

  • Added missing experimental details.

Filed Under: OpenLab! Tagged With: anodic polarization, localized corrosion, na718, nickel alloys, polarization curves

Professor | Director Curtin Corrosion Centre
Chevron & Woodside Chair in Corrosion | Curtin University
Adjunct Professor
Norwegian University of Science and Technology (NTNU)

  • About
  • Contact Me
  • Subscribe
  • Ref Convert

Copyright © 2022 · Mariano Iannuzzi · WordPress · Log in
